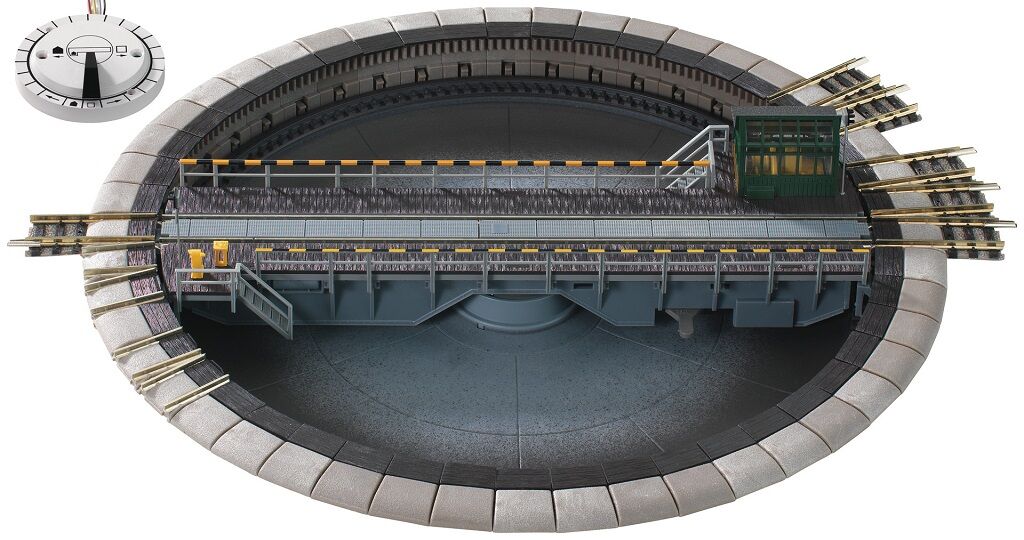

Fleischmann Electric Turntable with Switch 183 mm - 915

The comfortable electric turntable in N scale (1:160) with individually switchable track exits is designed for realistic operation in locomotive depots and depots. The model is equipped with an electric drive and is controlled by a control switch. The length of the turntable (bridge) is 183 mm, which corresponds to the turntables used in N scale and allows the rotation of common locomotives of this scale. The turntable is designed in a prototype design of the turntable pit and offers a very realistic treatment of all important details. The basic set contains 6 approach tracks and 4 blind sidings. The approach tracks can be rearranged as desired in steps of 7.5° and with the expansion set it is possible to expand the turntable to up to 48 track exits. The turntable uses an intelligent "thinking" power supply system, where the operating current is supplied via the turntable bridge. The control switch (6910) ensures that only the currently selected exit is energized, while all other tracks remain de-energized. This allows locomotives to be safely parked without voltage and operation in the depot is clear and realistic without complicated wiring.

Specifications:

• N scale (1:160)
• Length 183 mm
• Profile height 2.1 mm

Main features:

• Electric turntable with individually switchable outputs
• Switch control
• 6 approach tracks and 4 blind sidings
• Can be expanded to up to 48 track connections

Documentation:

• Operating instructions (DE, EN, F, IT, NL)
• Spare parts list (DE, EN)
